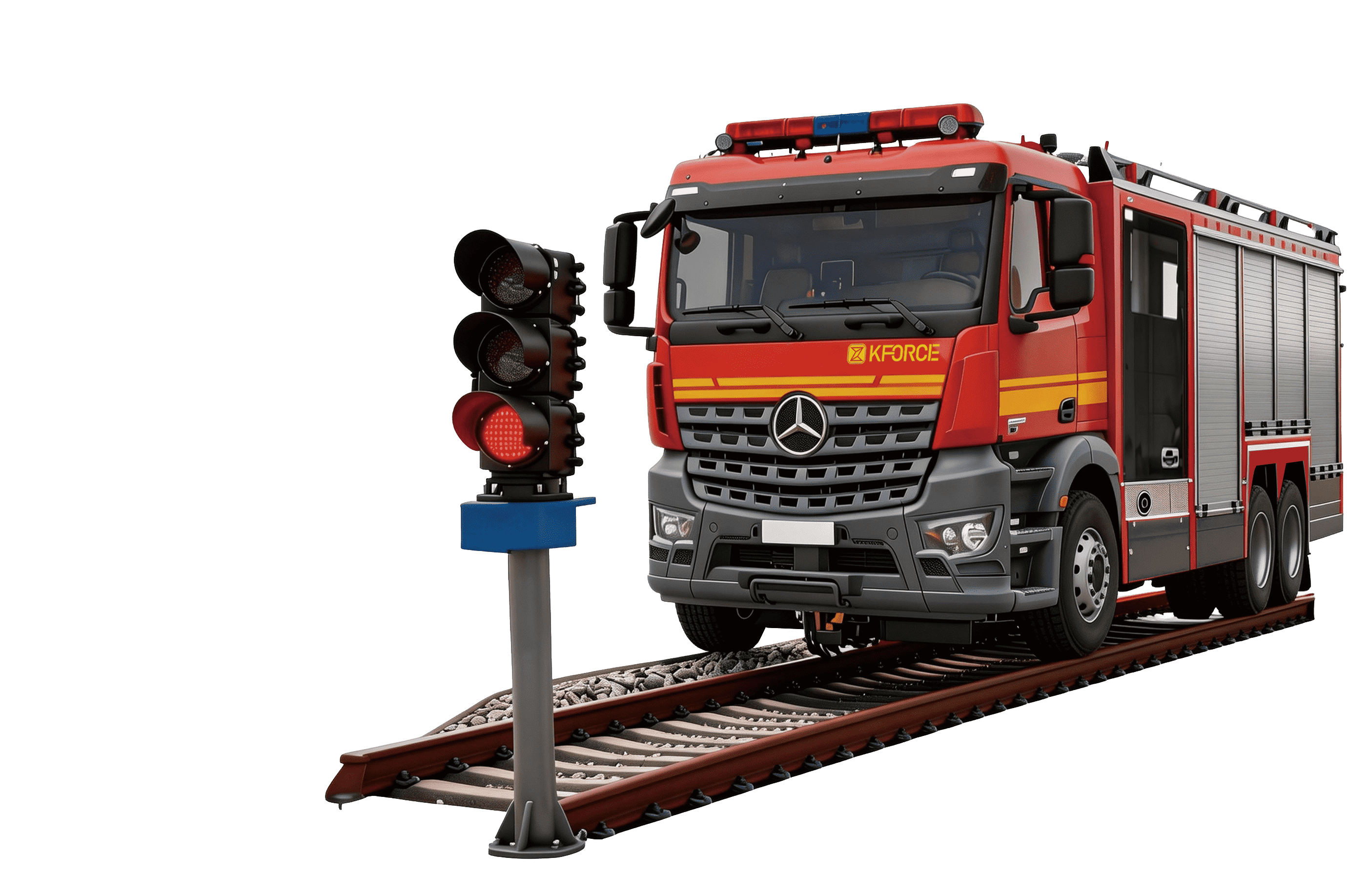

Rail firefighting vehicle

pro1

Designed for rail transit, it swiftly enters confined spaces like subways and tunnels for fire fighting and rescue.

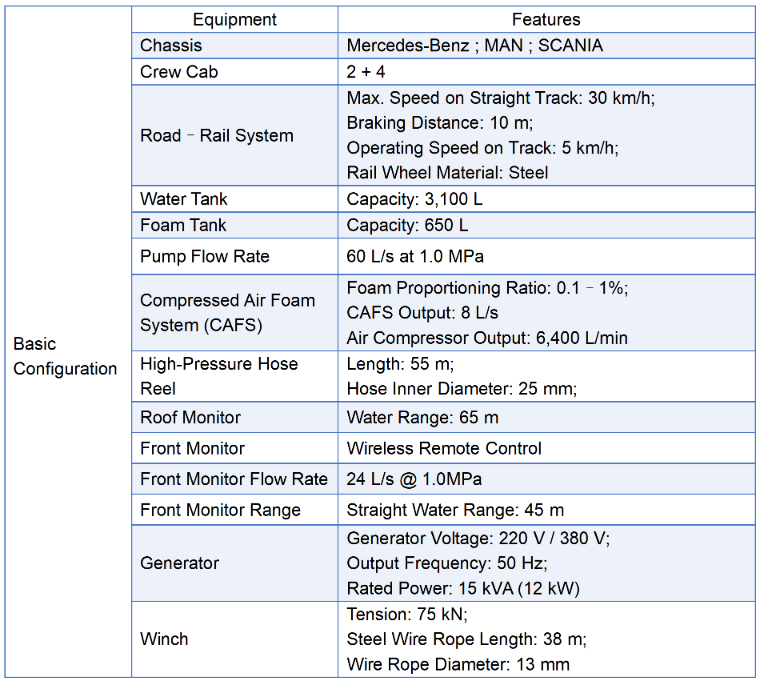

Contact Us Technical data

pro5

Chassis

Mercedes-Benz ; MAN ; SCANIA

Crew Cab

2 + 4

Road–Rail System

Max. Speed on Straight Track: 30 km/h; Braking Distance: 10 m; Operating Speed on Track: 5 km/h; Rail Wheel Material: Steel

Water Tank

Capacity: 3,100 L

Foam Tank

Capacity: 650 L

Pump Flow Rate

60 L/s at 1.0 MPa

Compressed Air Foam System (CAFS)

Foam Proportioning Ratio: 0.1–1%; CAFS Output: 8 L/s Air Compressor Output: 6,400 L/min

High-Pressure Hose Reel

Length: 55 m; Hose Inner Diameter: 25 mm;

Roof Monitor

Water Range: 65 m

Front Monitor

Wireless Remote Control

Front Monitor Flow Rate

24 L/s @ 1.0MPa

Front Monitor Range

Straight Water Range: 45 m

Generator

Generator Voltage: 220 V / 380 V; Output Frequency: 50 Hz; Rated Power: 15 kVA (12 kW)

Winch

Tension: 75 kN; Steel Wire Rope Length: 38 m; Wire Rope Diameter: 13 mm

Application scenario

Capable of operating directly on rail tracks, the vehicle responds to emergencies in subway systems, railway tunnels and station areas.

It reaches incident sites quickly to conduct fire suppression, smoke extraction, evacuation support and material transport, providing an effective solution where standard fire engines cannot access enclosed rail environments.

pro5

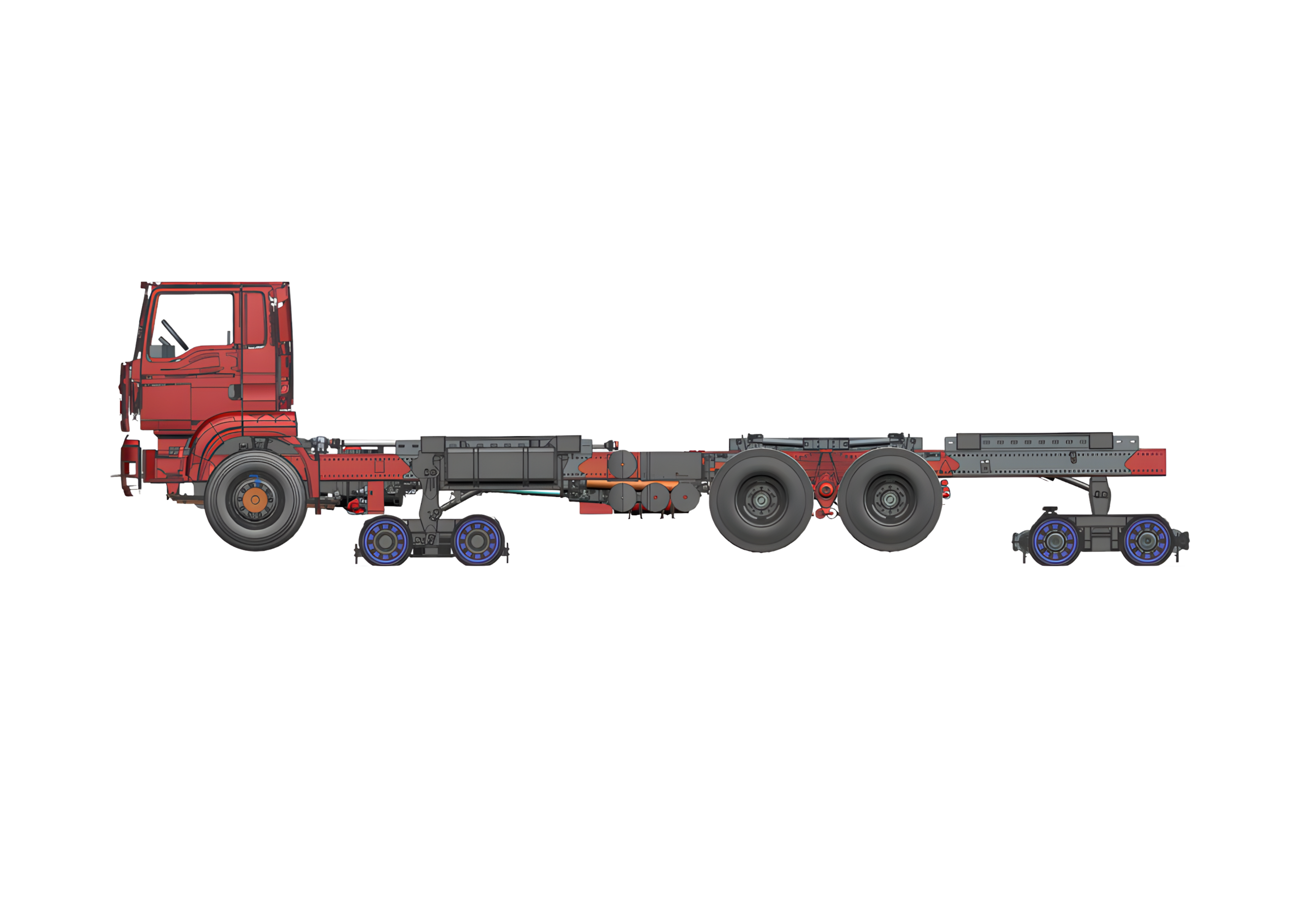

Chassis 3D drawing
