Home > Product Center

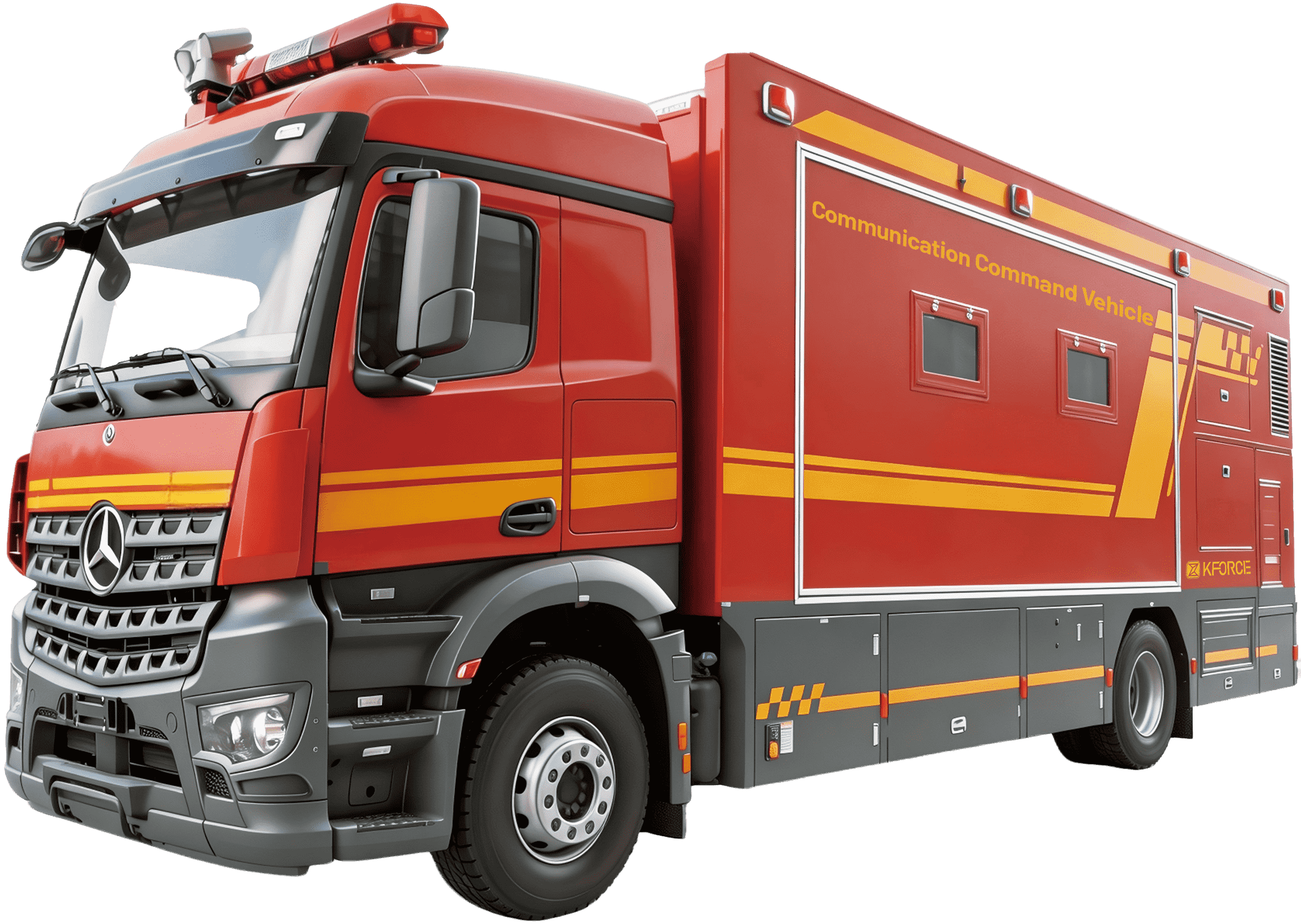

Large command and communication vehicle

pro1
360
pro1

Integrated communication system for large-scale cross-department command.

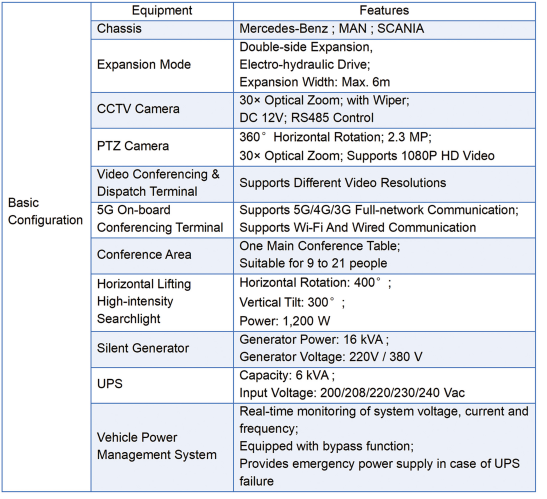

Contact Us Technical data
pro5
Chassis
Mercedes-Benz ; MAN ; SCANIA
Expansion Mode
Double-side Expansion, Electro-hydraulic Drive; Expansion Width: Max. 6m
CCTV Camera
30× Optical Zoom; with Wiper; DC 12V; RS485 Control
PTZ Camera
360°Horizontal Rotation; 2.3 MP; 30× Optical Zoom; Supports 1080P HD Video
Video Conferencing & Dispatch Terminal
Supports Different Video Resolutions
5G On-board Conferencing Terminal
Supports 5G/4G/3G Full-network Communication; Supports Wi-Fi And Wired Communication
Conference Area
One Main Conference Table; Suitable for 9 to 21 people
Horizontal Lifting High-intensity Searchlight
Horizontal Rotation: 400°; Vertical Tilt: 300°; Power: 1,200 W
Silent Generator
Generator Power: 16 kVA ; Generator Voltage: 220V / 380 V
UPS
Capacity: 6 kVA ; Input Voltage: 200/208/220/230/240 Vac
Vehicle Power Management System
Real-time monitoring of system voltage, current and frequency; Equipped with bypass function; Provides emergency power supply in case of UPS failure
Designed as a mobile command center for fire scenes, earthquakes, floods and large-scale events. The vehicle integrates satellite communication, radio networks, video transmission, command and data processing systems, enabling real-time connectivity between the site and headquarters.
It supports multi-agency coordination, unified command and informed decision-making in complex emergencies.
pro5

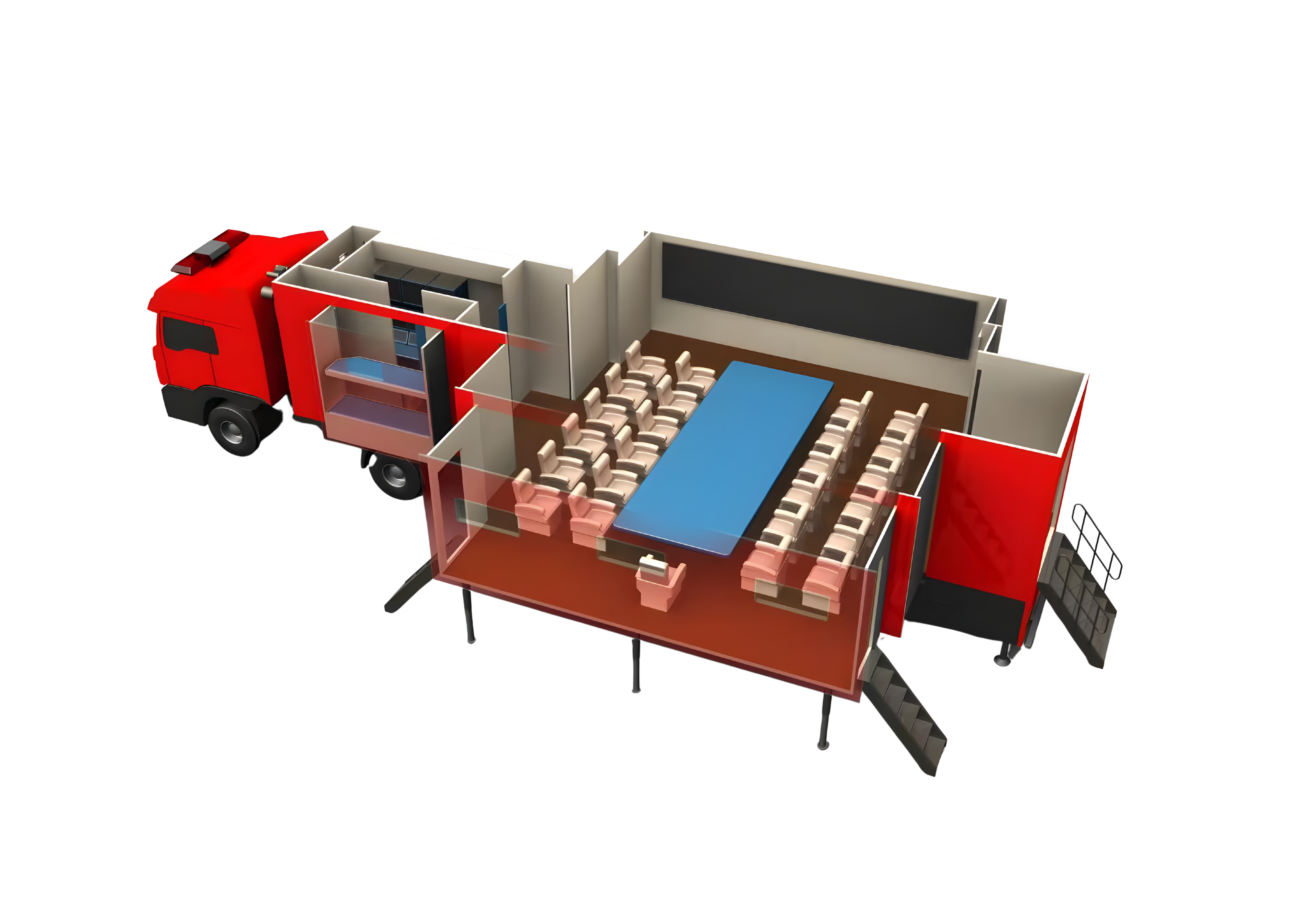

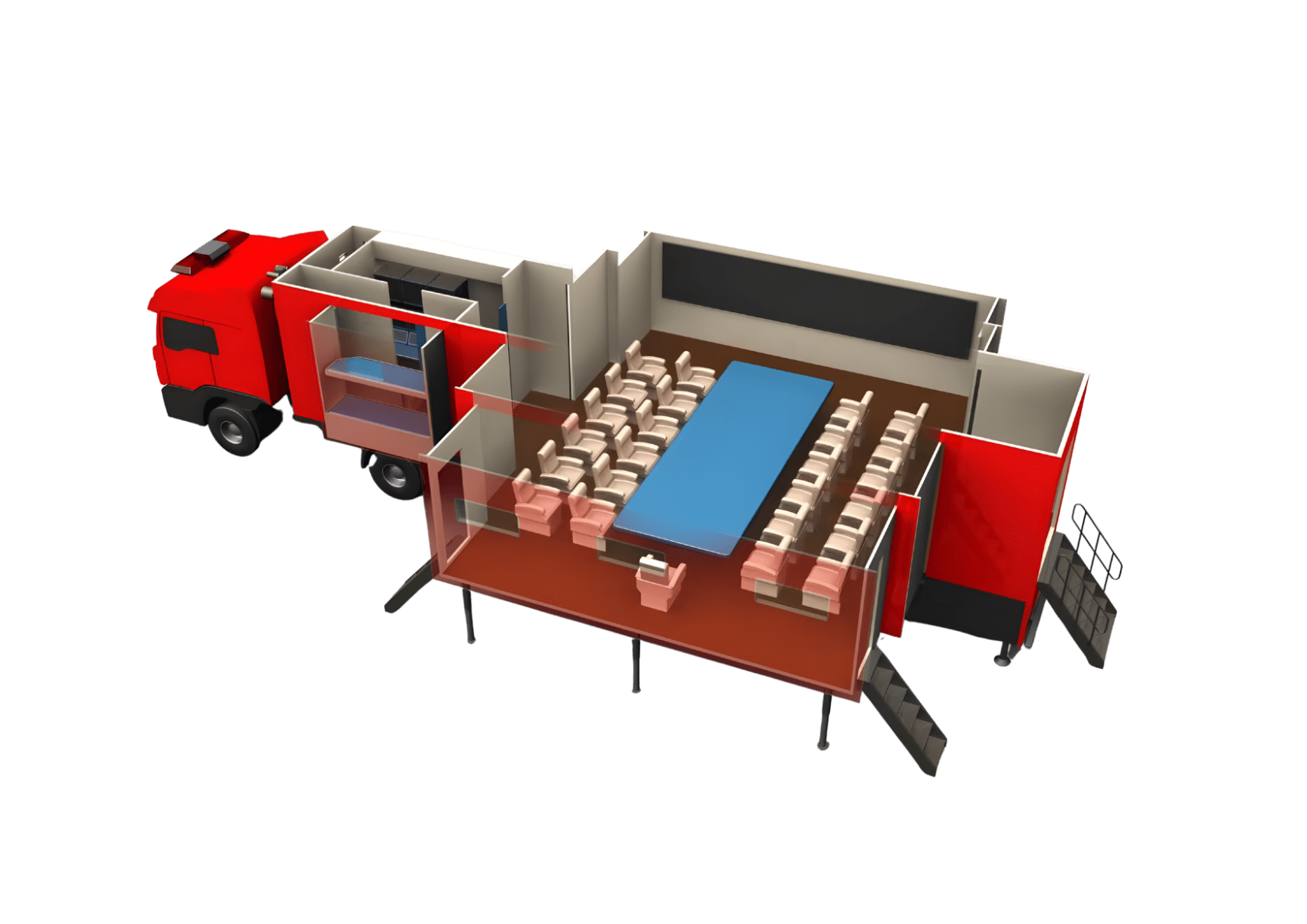

Super Large Communication Command Shelter
pro5

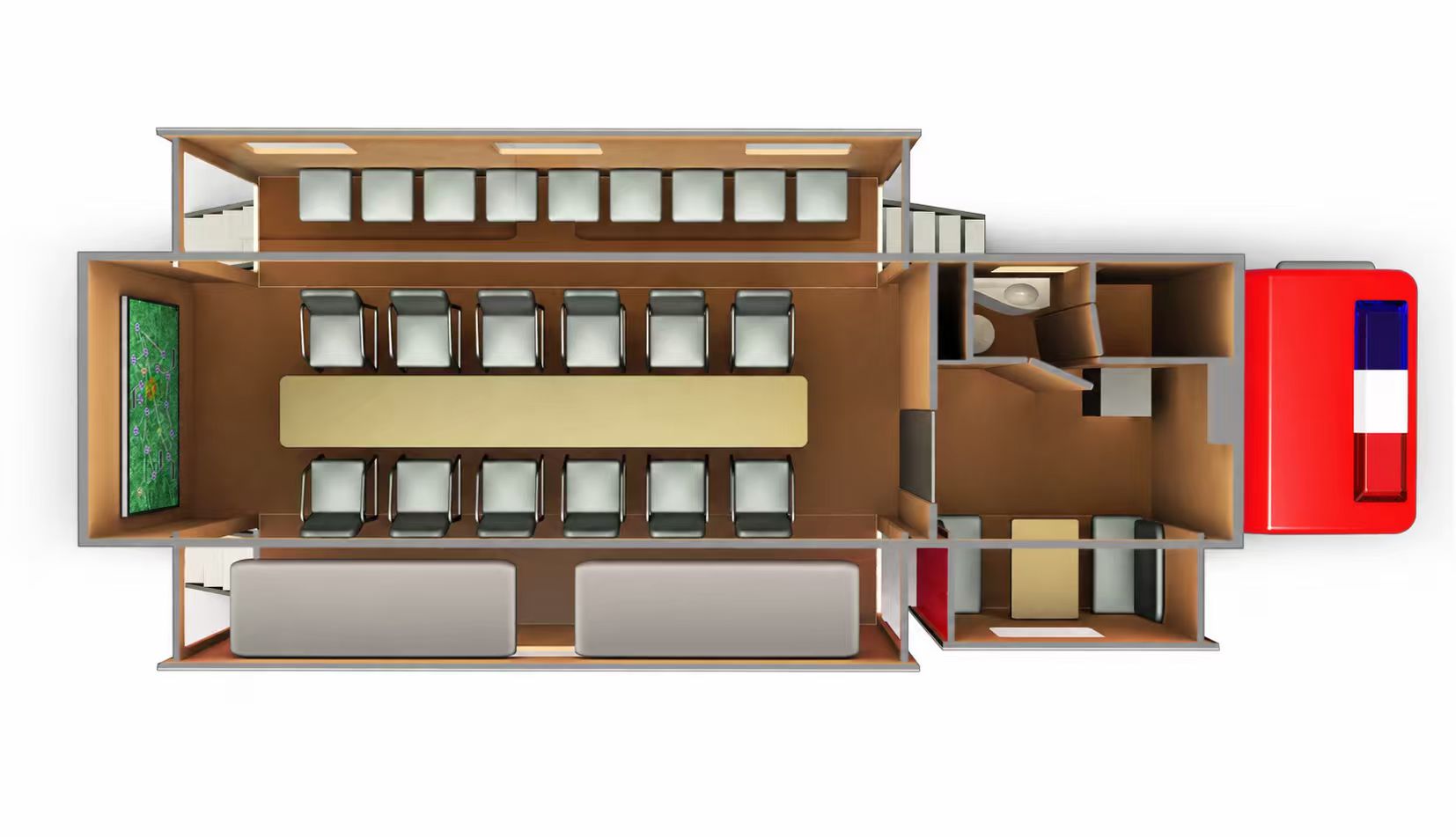

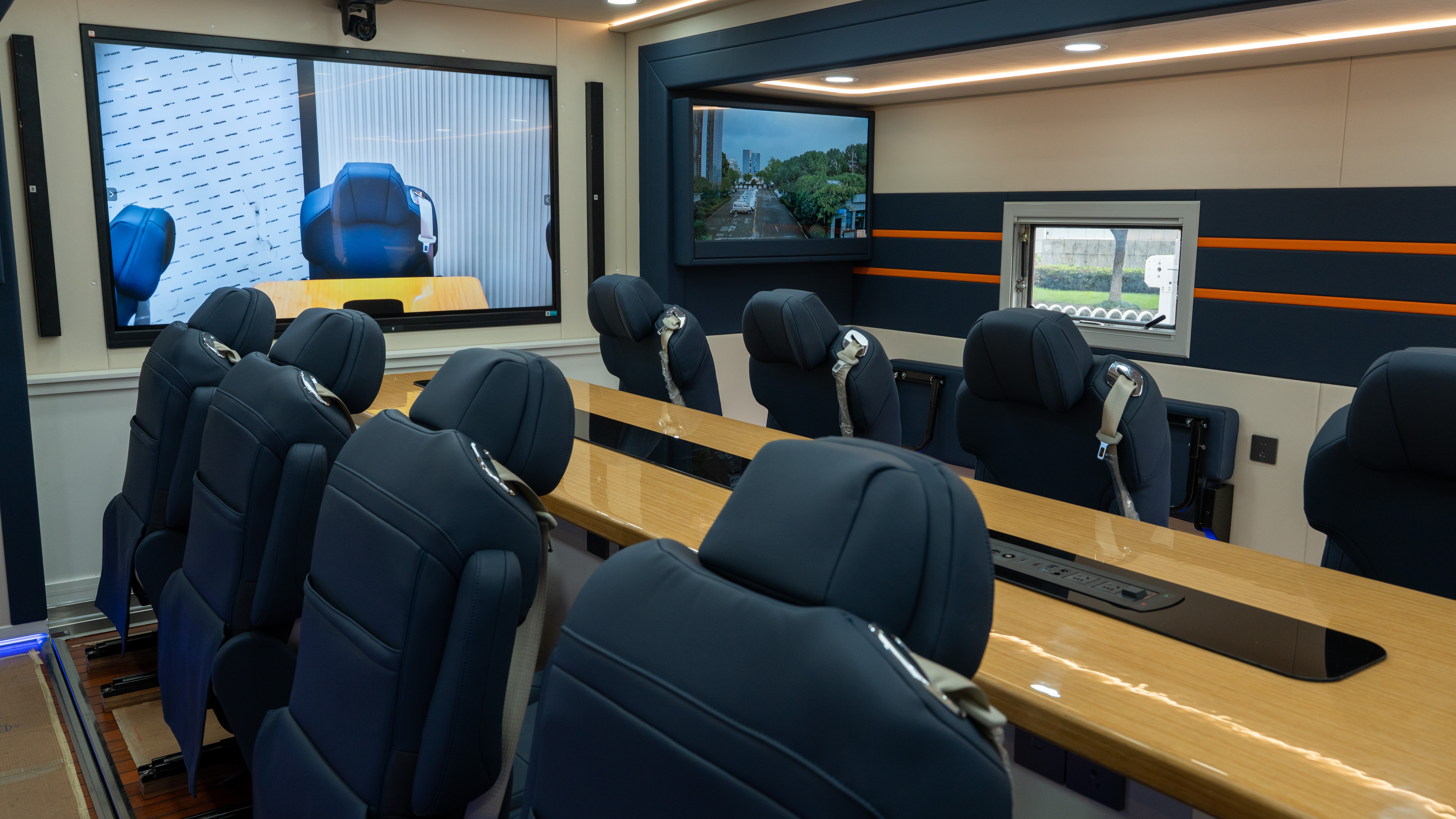

Interior
pro5

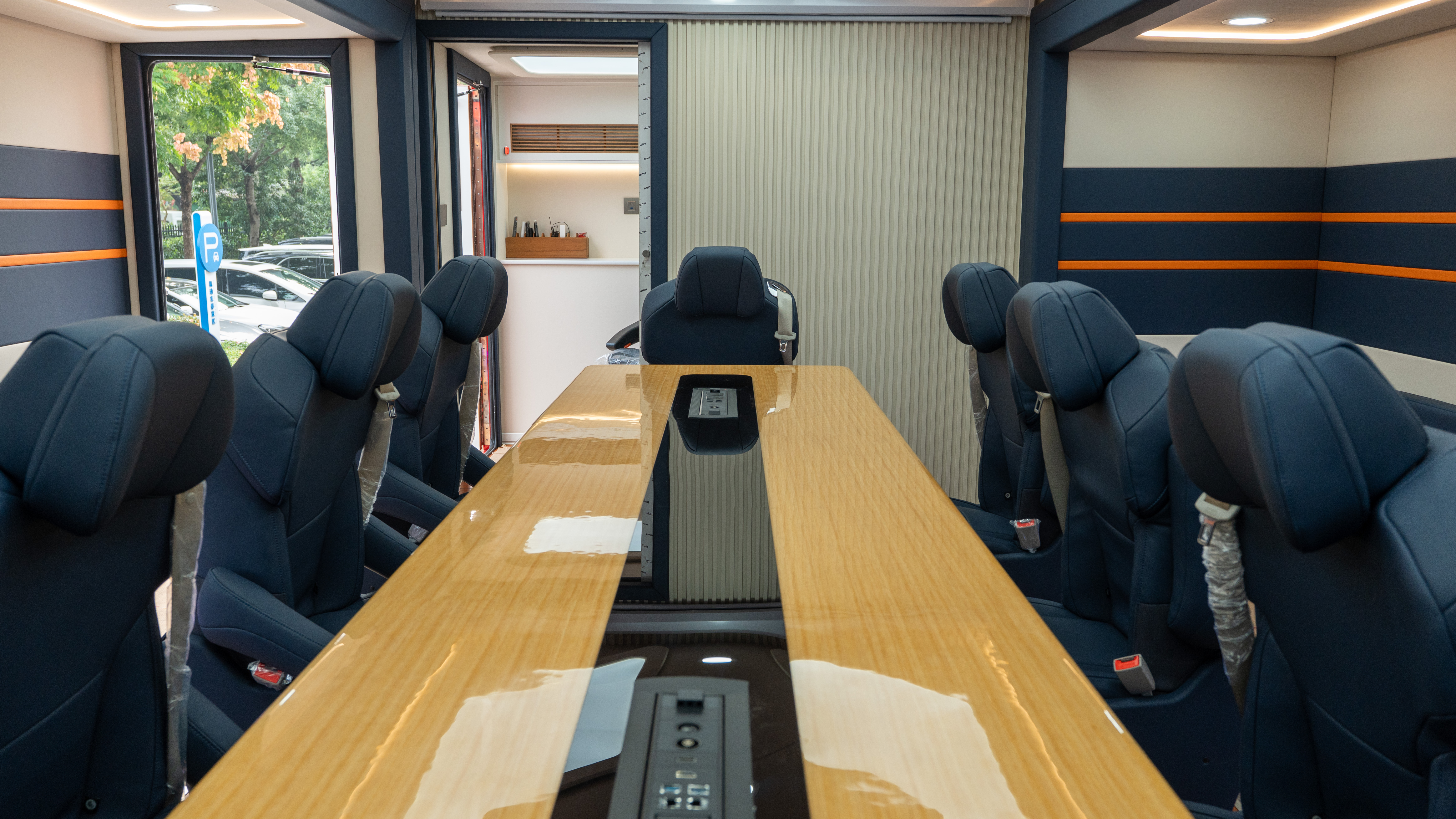

Interior
